K10 Low Relaxation steel PC strand is a new stage of evolution in development of prestressing steels for concrete

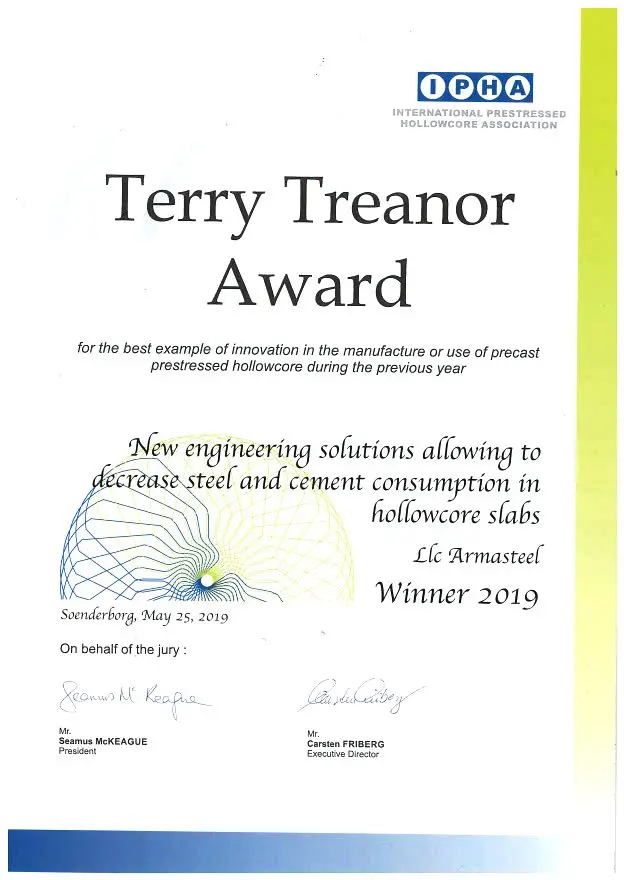

Terry Teanor Award (International Prestressed Hollowcore Association, Denmark 2019) for the best innovation in prestressed concrete

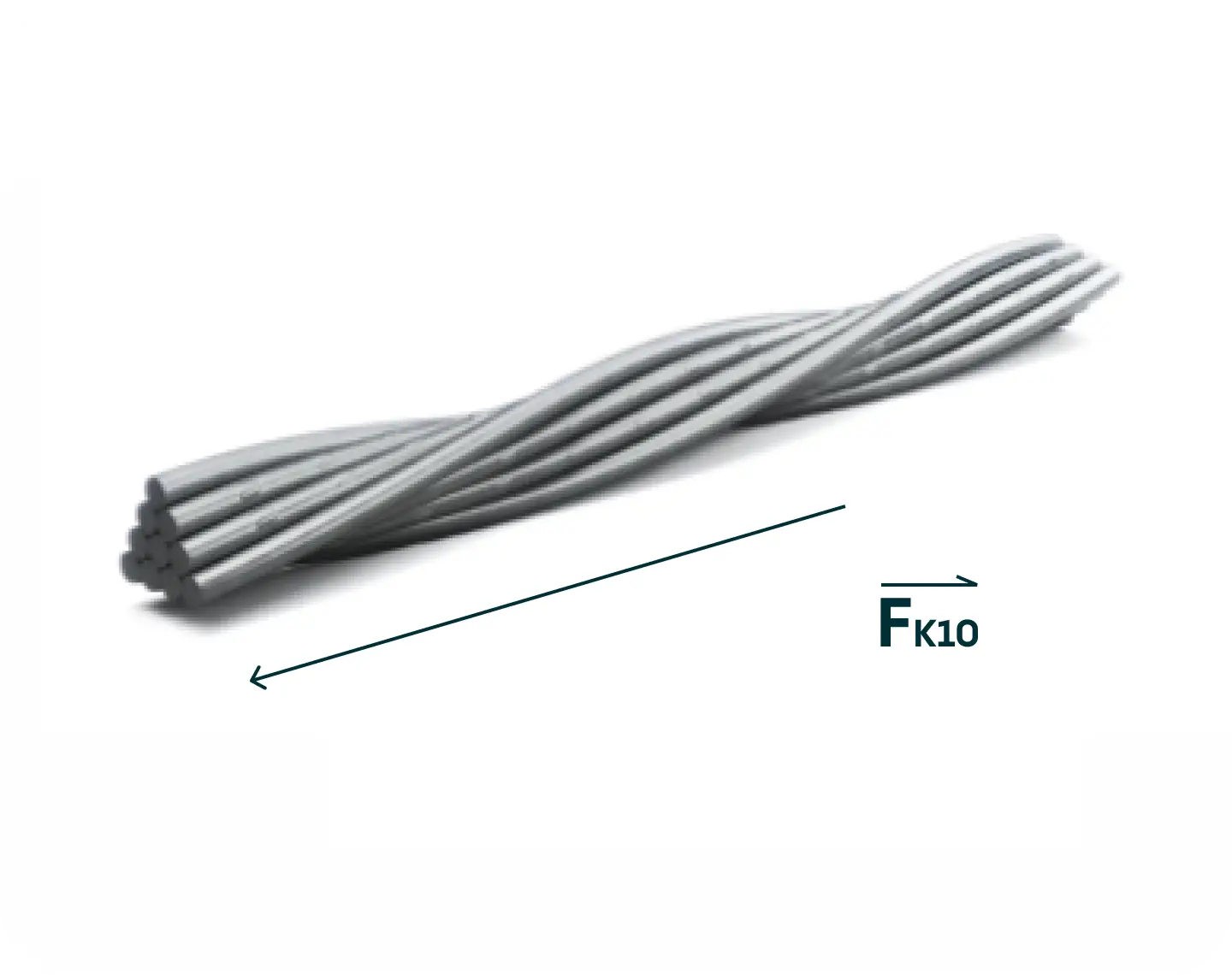

K10 Low Relaxation steel PC strand
Ten-wire ТС 259311-001-41558381-2019
Manufacturer:
ARMASTEEL INDUSTRIES JSC, Murom
Technical specifications

Type: Ten-wire trihedral low relaxation compacted

Diameters: from 7.98 mm to 23 mm

Breaking tension: 1860-2160 n/mm2 (strength class)

Direction of lay: left

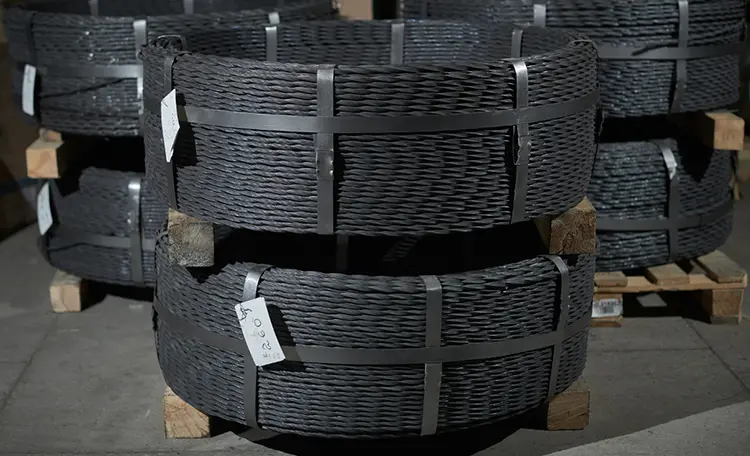

Types of packaging
Open

Weight of the coil from 0.5 t to 3 t with strapping steel tape

Sizes

Height: 300mm — 800mm

Inner diameter: 800mm

Outer diameter: 1000-1200mm

Closed

Weight of the coil from 0.5 t to 3 t with strapping steel tape, wrapped in synthetic material

Sizes

Height: 300mm — 800mm

Inner diameter: 800mm

Outer diameter: 1000-1200mm

Sizes

Height: 600mm-800mm

Inner diameter: 800mm

Outer diameter: 1000-1200mm

Comparison of K10 and K7 strands

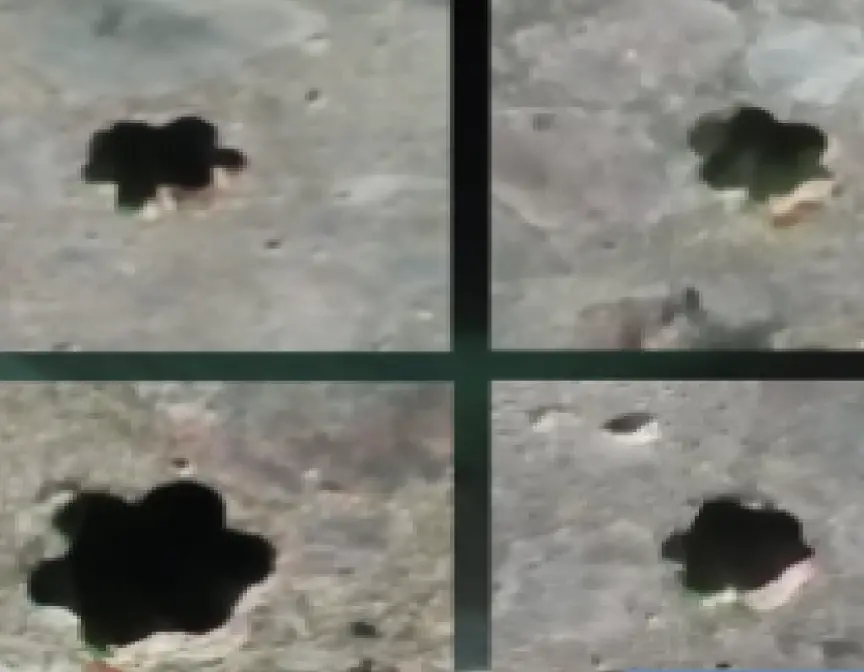

Bond to the concrete of the K10 Strand is about 2 times higher than that of K7
K10
Pronounced surface relief from protruding side faces
K7
Lack of surface relief

Adhesion to the concrete К10

25% more, than K7

K10
9 wires out of 10 come into contact with concrete
K7
6 wires out of 7 come into contact with concrete
The enveloping contour K10 is larger than K7
K10
PK10
PK10 = LcirK7 + 25%
K7
LcirK7

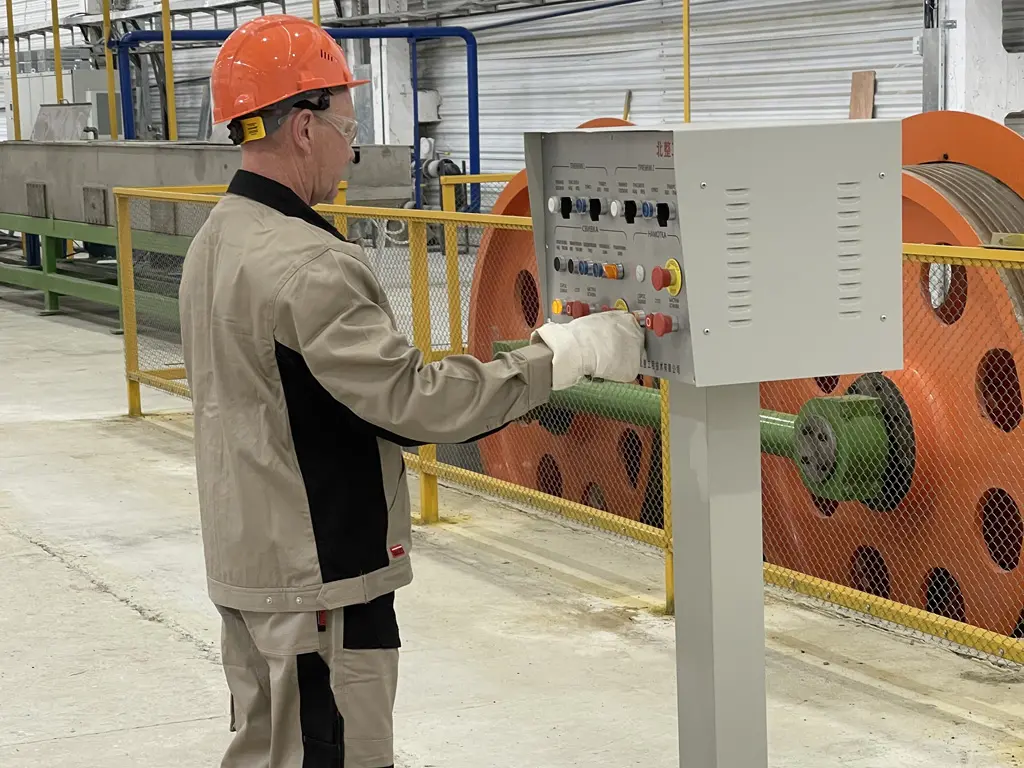

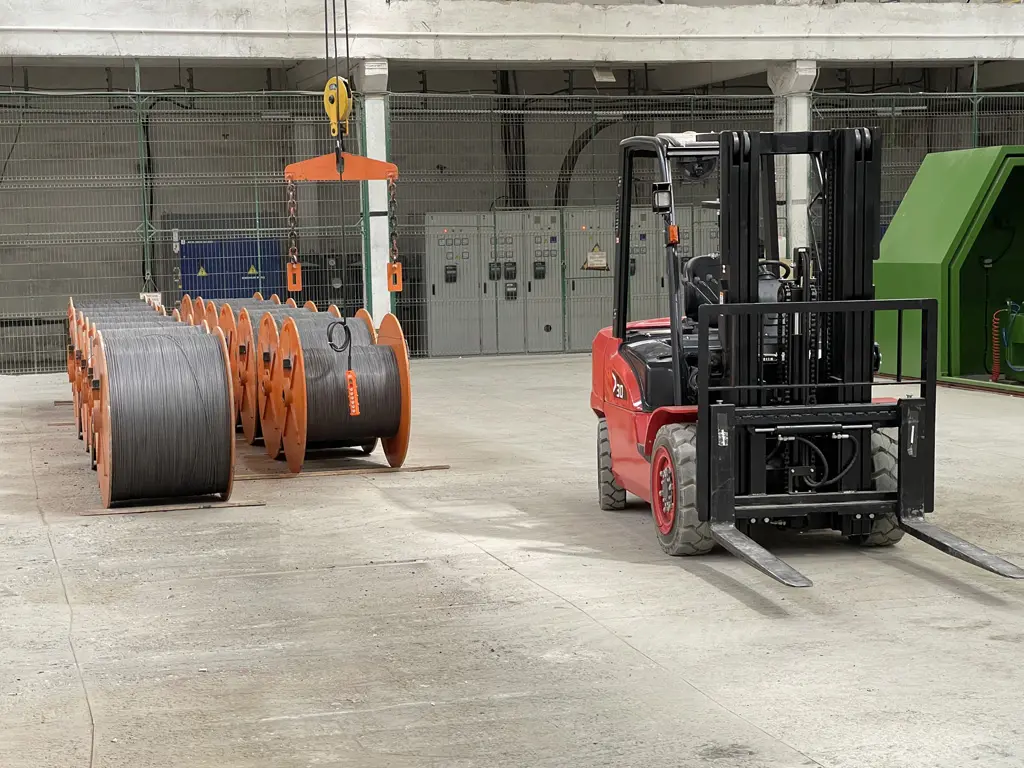

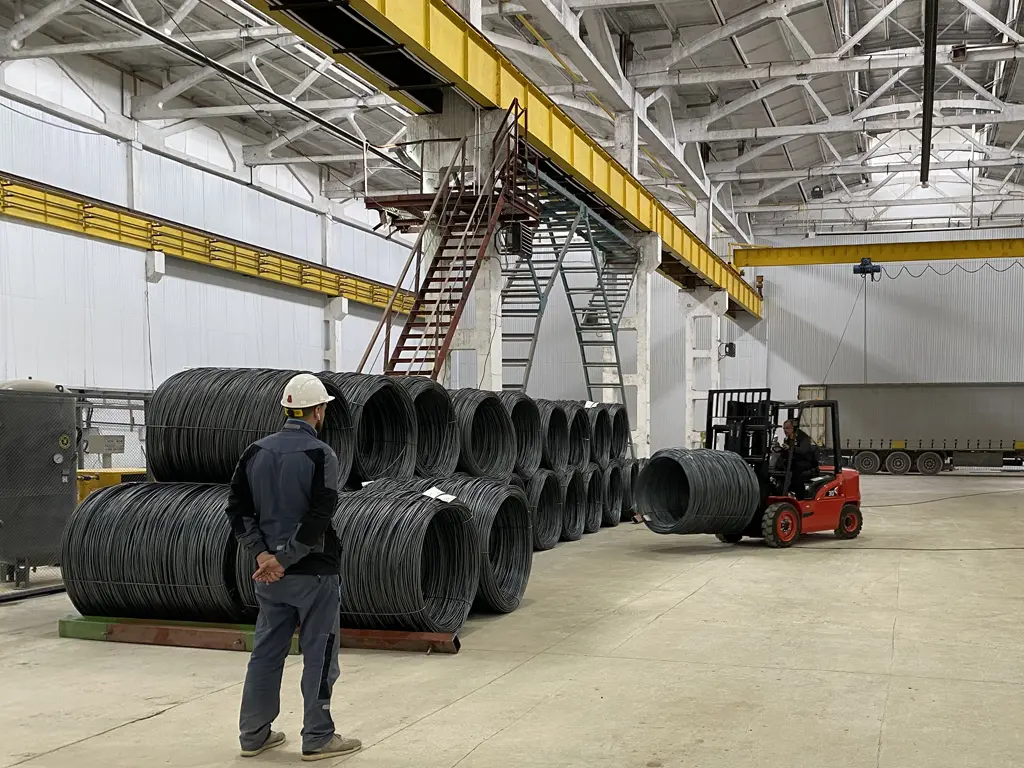

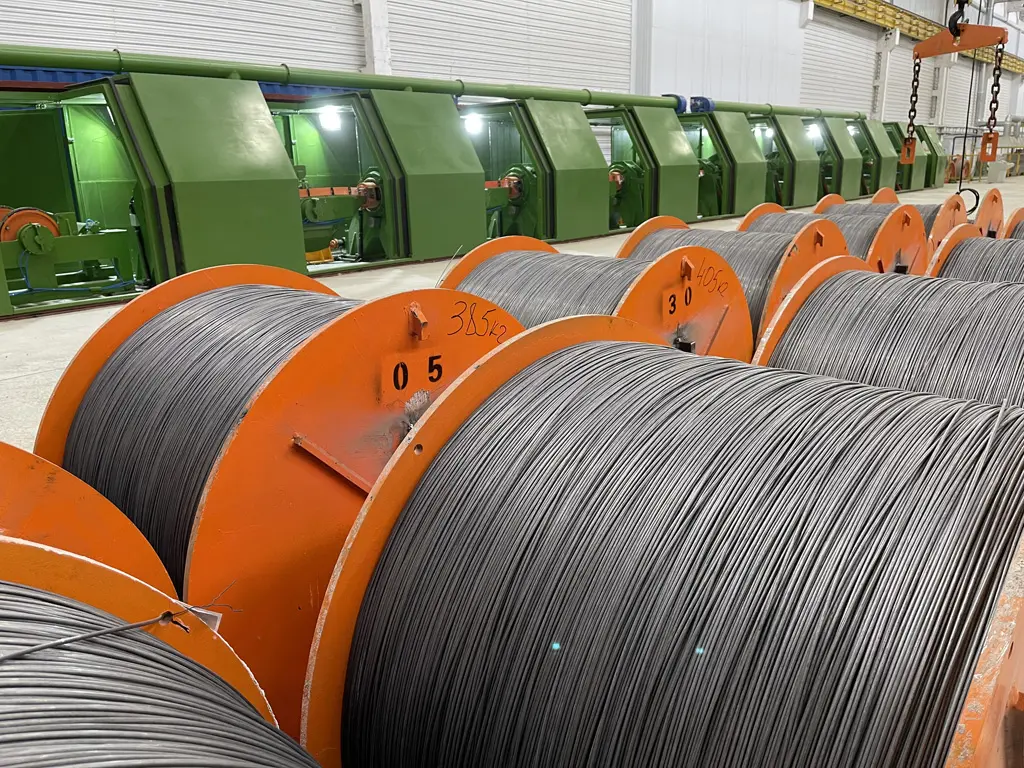

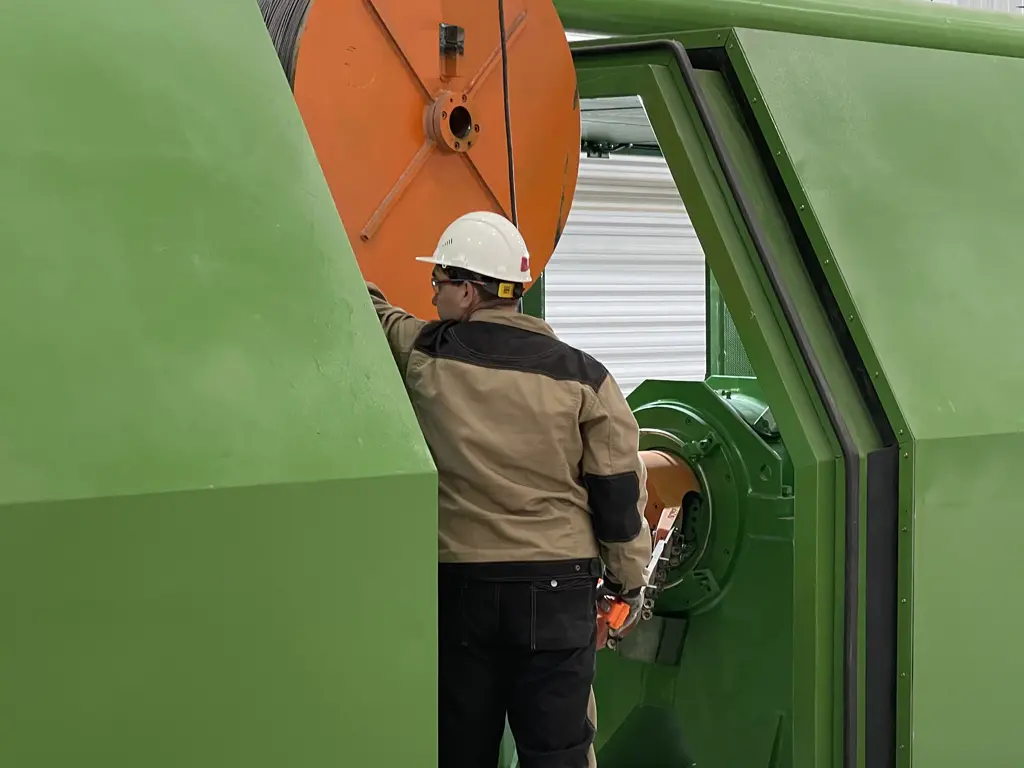

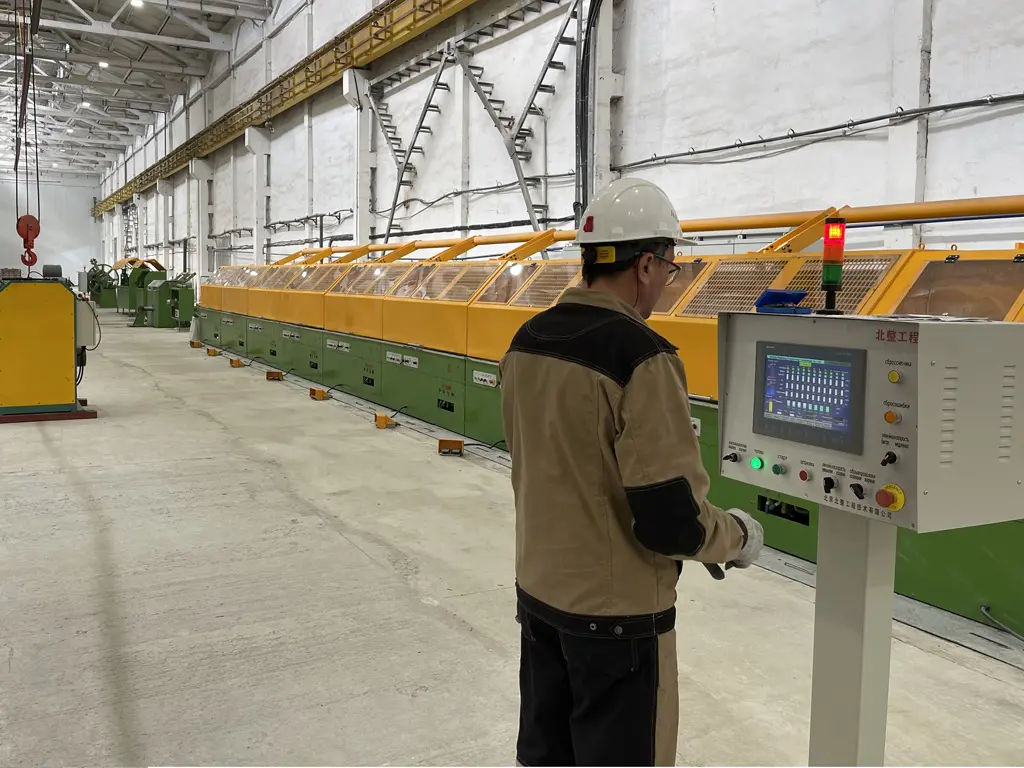

Armasteel Production Photos

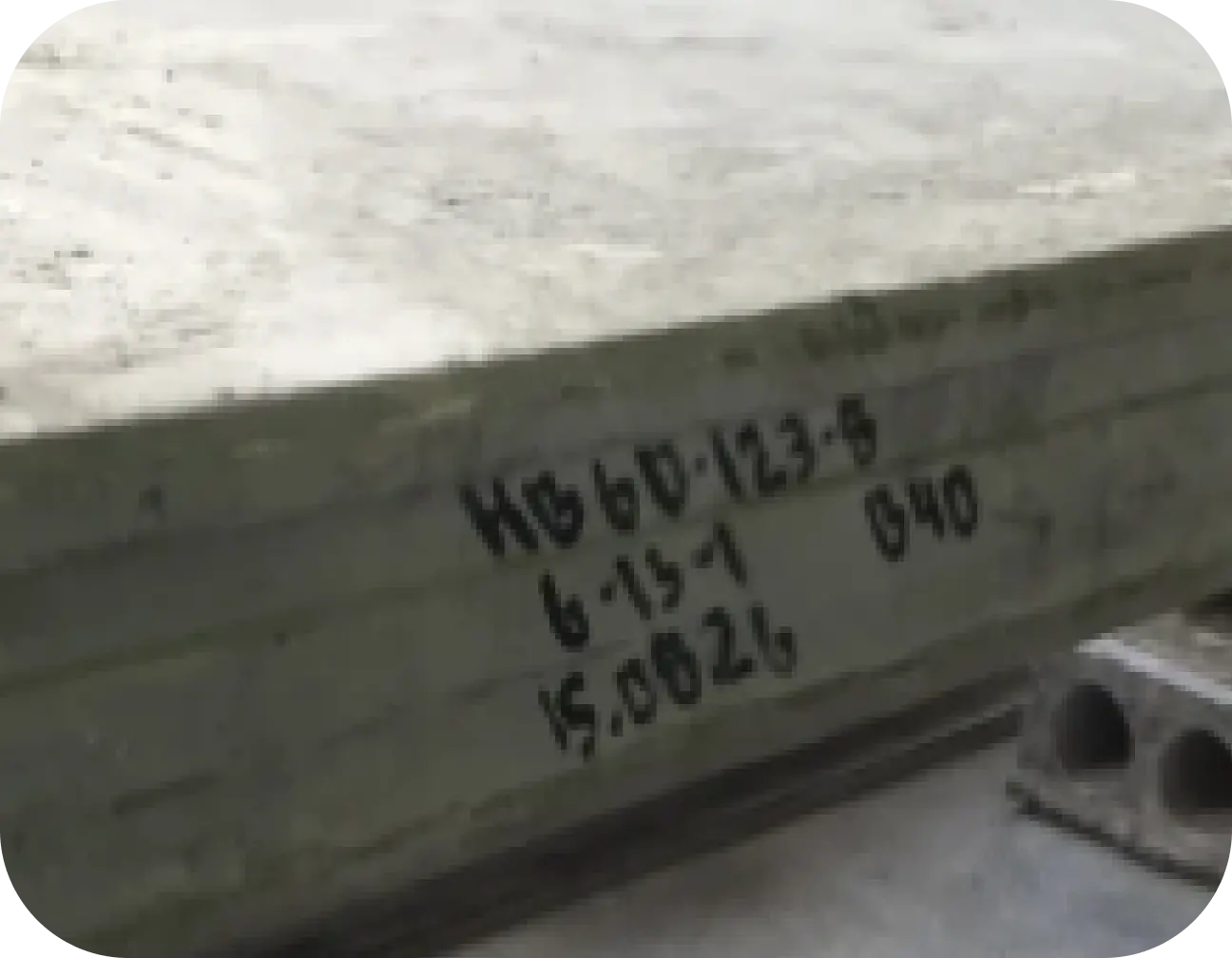

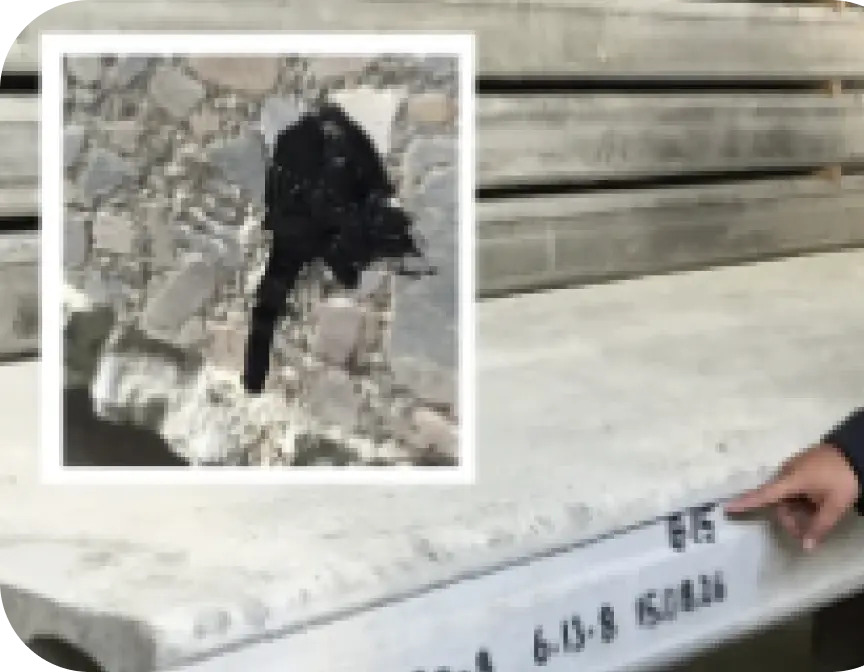

Complete absence of slippage in concrete
K10
- Absence of slippage in C15 concrete
K7
– Defect
Greater strength at the edges of products

Tests on the bearing capacity of the reference zone:

K10
– An inclined crack does not occur from the edge
- An inclined crack does not occur from the edge
K7

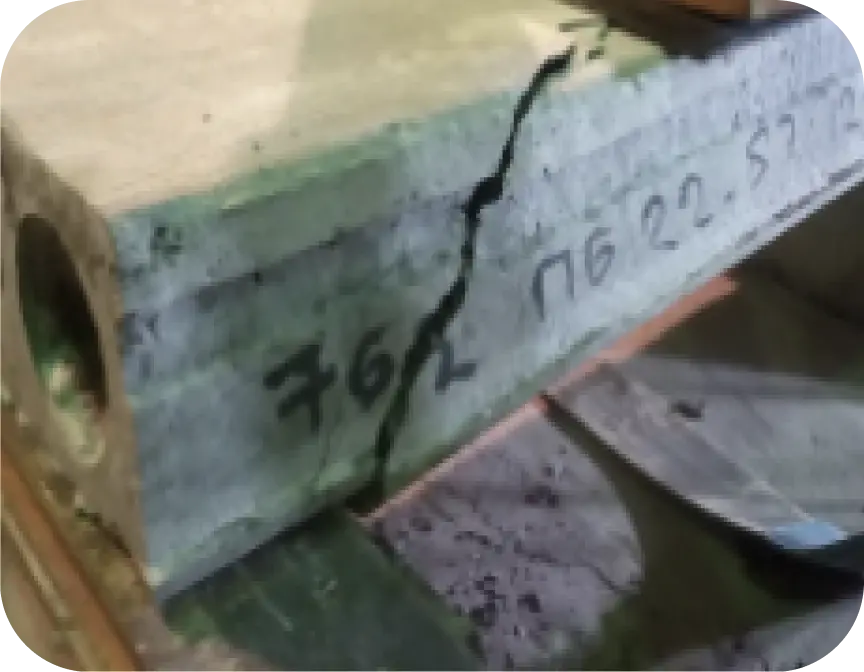

– An inclined crack occurs from the edge
- The edges of the slab are under-reinforced
Reduction of cement and aggregate costs

It is not necessary to increase the concrete grade to hold the K10 strands

K10
At least C20
K7
- At least C35 (for retention in concrete) (for retention in concrete)
Gravel aggregate is sufficient for bond to the concrete

to hold the К10 strands, it is not necessary to increase the concrete grade

K10
— Gravel inert fill
K7
— Only crushed stone inert fill

Reduction of cement

and steel consumption

The tension of the К10 PC Strand is 30% more

K10

1320 — 1500 МPа

80%from the conditional yield point to (SP63)

K7

900 — 1050 МPа

60%from the conditional yield point to (SP63)
The aggregate strength of the strand at the same cross-section is 10% higher

SK10= SK7

σK10 + σK7 + 10%

K10
K7
With an equal cross-section of strands, К10 wires are thinner than К7 wires, and the specific strength is higher.
for S = 150mm2:

4,3mm — wire diameter

309kN — aggregate breaking strength

5,2mm — wire diameter

279kN — aggregate breaking strength

The maximum cross-section is 42% larger with the same specific strength
K10
K7
dmax = 5.2mm2

214mm2 maximum cross-section

1860 н/mm2 specific strength

398 кН —aggregate strength

150мм2 maximum cross-section

1860 н/mm2 specific strength

279 кН —aggregate strength

Reducing the number of strands and geometric cross-section dimensions in products
K10
K7

Multiple reduction

of transfer area length

2-3 times

depending

on the size of the strand

Comparison of the transfer area length of PC Strands in prestressed hollowcore floor slabs
K10

Prestressing with K10 strands according to TU 259311-001-2019

K7

Prestressing with K7 strands according to GOST R 53772-2010, ASTM A416, BS 5896 etc.

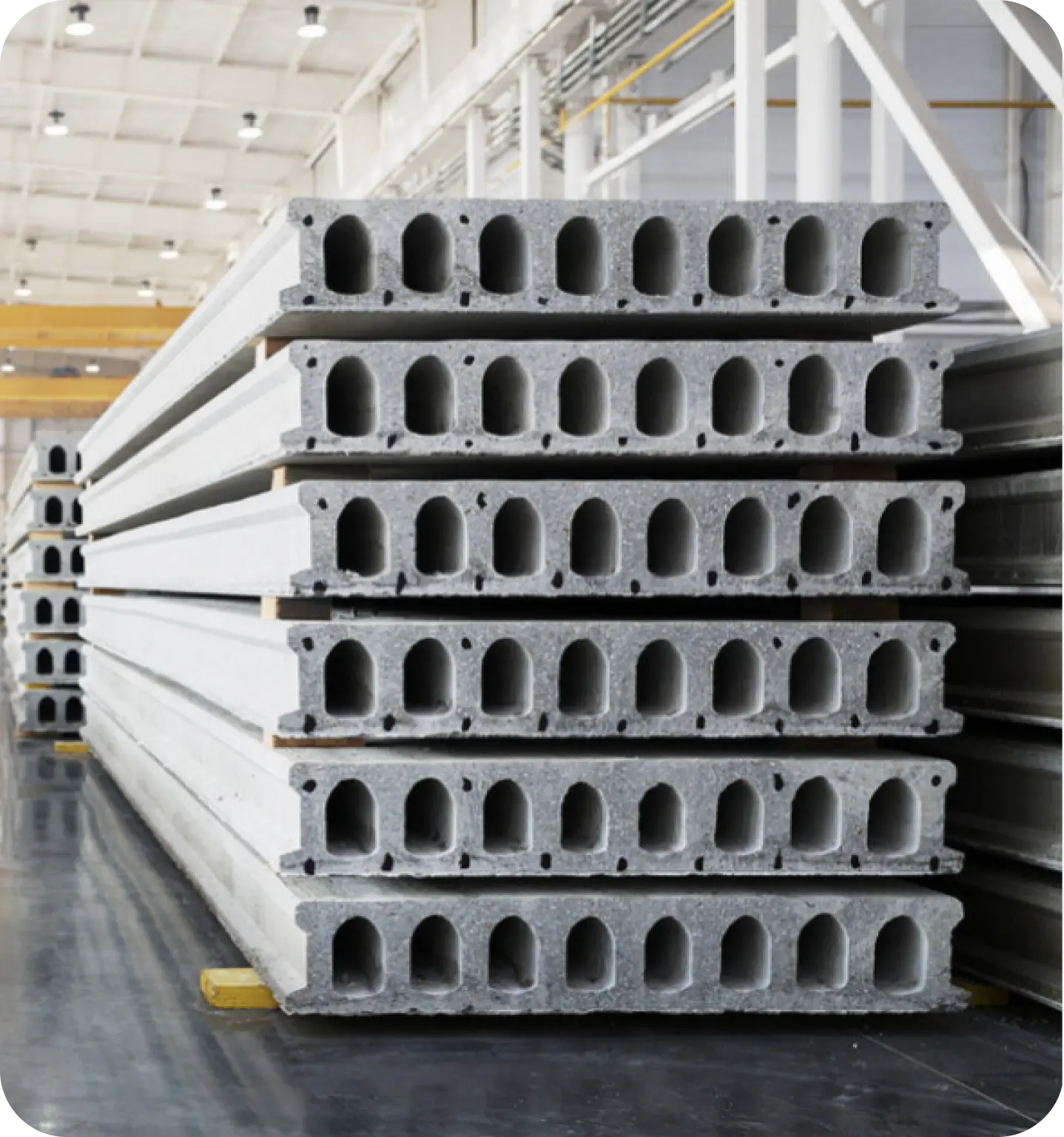

The confirmed economic effect of replacing the 7-wire PC Strands with K10 PC Strands in hollowcore slabs reaches an average of 30-40%. This effect increases with the increase in the geometric dimensions and load capacity of the products.
The percentage of savings of PC Strands in hollowcore slabs with a height of 220 mm due to the use of K10 strands.
Calculation of the economic effect of using 1tn of K10 PC Strand

on the example of the production

of hollowcore slabs PB60.12-8

Specific consumption of materials

per 1 item:

Concrete: C20 = 0.84 m3

M500 Cement: 250kg/m3 = 210kg

K10 strand = 10kg

Concrete: C40 = 0.84 m3

M500 cement: kg/m3 = 420kg

K7 strand = 14kg

The use of K10 PC Strand allows to increase the productivity of plants without expensive reconstructions due to:
– reducing the holding time of products on the lines up to 30%
- exclusion of slippage defects

1tn of K10 PC Strand is spent on 90 items

Economy

Steel: 90pcs x (14-10) = 360kg ≈ $400

Cement: 90pcs x (500-250) = 22.5 t ≈ $1000

The cumulative economic effect of using 1T K10 PC Strand is $1400
+ the effect of end slip exception
+ the effect of reducing the holding time of products before removing strands cutting
Reviews about K10
"We have implemented the world's first test of the TK-10 PC Strand on the formless molding line by manufacturing hollowcore slabs prestressed by TK10 and K7 ropes in a 50/50 ratio and testing the capacity of these slabs. The advantage of TK10 strands in comparison with K7 in adhesion to concrete was striking. With the destructive load and the slip of the K7 strands, the TK10 strands remained in place. The bearing capacity of the slabs increased by 15%, TK10 strands did not slip due to their design features, fully used their strength ...
Ravil Mukhteev
Chief Engineer of Tyumen Reinforced Concrete Plant No. 1
"Together with the specialists of NIIZHB, we conducted tests of prestressed hollowcore floor slabs made by the method of formless molding. The test readings of floor slabs reinforced with TK-10 strands for anchoring in concrete clearly exceed the readings of slabs reinforced with K7 strands. This gives a number of economic advantages for the production of prestressed concrete..."
Alexander Kiselyov
Chief Technologist of JSC "Barricade" (St. Petersburg)
"We have conducted several series of tests of the new TK10 PC Strand in hollowcore slabs of formless molding. We reduced the amount of prestressing steel and the cement, used gravel instead of crushed granite rubble. All produced slabs have successfully passed the tests for rigidity, crack resistance and load capacity..."
Andrey Medvedev
Technical Director of the Kulonstroy reinforced concrete plant (Kazan). Chief Engineer of Tyumen Reinforced Concrete Plant No. 1
